Best Ground Bar Kits for Safe, Reliable Electrical Bonding in Panels
Discover top ground bar solutions that simplify grounding in electrical panels, data enclosures, and cabinet setups. This guide highlights five solid options for different needs—from compact wall-mounted bars to multi-position terminal strips. Ideal buyers include electricians, facility managers, DIY enthusiasts tackling panel grounding, and contractors seeking quick, dependable installations. Below is a quick comparison table of the highlighted products to help you pick fast.
| Product | Best For | Key Benefit |
|---|---|---|
| Wall Mounted Copper Ground Bar | Industrial cabinets and equipment grounding | Pre-assembled with insulators and brackets |
| 19 Inch Bus Bar Kit | Data racks, enclosures, and clean wiring | Copper bar with long grounding cable |
| 10″ Copper Ground Bar Kit | Versatile high-current grounding | High Uimp ratings with multiple terminals |
| Relaxweex 2 Set Ground Bar Kit | Two-panel projects or larger assemblies | 23 terminals per bar, easy install |
| MURRAY ECLX071M Ground Bar Kit | Compact, no-frills grounding | Mixed terminal sizes for flexible wiring |
Wall Mounted Copper Ground Bar With Insulators
This wall-mounted ground bar kit uses a high-conductivity copper plate paired with SM40 insulators, brackets, and mounting hardware. It supports up to 600 Amp and enables multiple ground points for quick, reliable installations. Best for industrial cabinets, equipment grounding continuity, and fixed copper busbar setups. A potential limitation is pre-assembled components—if you need customize spacing, adjustments may require reworking mounting hardware.
19 Inch Bus Bar Kit With Grounding Cable
This 19-inch copper bus bar kit includes a 4-foot grounding cable and a robust hardware set. Made from C110 copper, it is well-suited for data racks, cabinets, and enclosures requiring a clean, organized grounding path. It is best for users who want a complete kit with cable included, simplifying on-site installation. A limitation is the fixed length of the bus bar; larger configurations may require additional sections or extensions.
GOUNENGNAIL- 10″ Copper Ground Bar Kit
This 10-inch ground bar uses UL-listed SM40 insulators and offers 1/4″ terminals across 16 positions. Rated up to 7.2 kV, it’s a strong option for compact, high-current grounding in smaller panels and equipment racks. It’s best for projects needing a longer reach than a small bar but not a full-size rail. A caution is the 10″ length limiting the number of connections in very dense wiring scenarios.

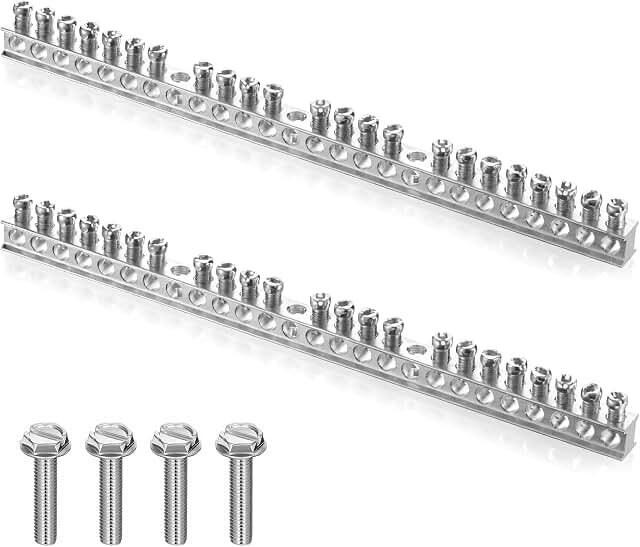

Relaxweex Ground Bar Kit, 23 Terminals
Relaxweex offers two sets with a total of 23 terminal positions per kit, designed for distribution boards and easy wiring organization. Aluminum lugs provide solid mechanical strength, and the included mounting screws enable straightforward installation in standard enclosures. Choose this if you need more terminals per panel and want a simple, screw-in setup. A potential downside is aluminum lugs; some users prefer copper where high conductivity is essential.
MURRAY ECLX071M Ground Bar Kit
This kit features a mix of small and large terminal openings, accommodating a wide wire range. It supports No. 14-6 AWG for copper/aluminum in small openings and No. 14-1/0 AWG in large openings. It’s best for flexible, multi-wire panels where varying conductor sizes are common. A limitation is the lack of included insulation or brackets beyond basic mounting hardware, so additional components may be required for specific installations.
Buying Guide: Ground Bar Kits For Electrical Panels
What should you consider when selecting a ground bar kit? Here are practical questions and answers to guide decisions.
- What amperage and voltage will the system support? Choose a bar with a Uimp rating that matches or exceeds your system’s surge and fault requirements.
- How many terminals are needed? Count the wires and plan future expansions to avoid crowding and ensure reliable connections.
- What material is best? Copper provides higher conductivity; aluminum is lighter and often more economical. Insulators should be UL-listed for safety.
- Will it fit the enclosure size? Measure panel width, mounting space, and bracket compatibility before purchase.
- Are all necessary accessories included? Some kits include cables, screws, and brackets; others require separate purchases.
- Can the kit be easily installed? Look for pre-assembled components, clearly labeled terminals, and simple mounting options.
Additional Considerations
- Compatibility with existing grounding configurations and busbars
- Environmental conditions like humidity and heat that may affect insulation and conductor integrity
- Maintenance requirements and ease of inspection for loose connections
FAQ
- What is a ground bar kit used for? It provides multiple accessible grounding points to ensure safe, low-impedance connections in panels and enclosures.
- Can I mix copper bars with aluminum wiring? Yes, but ensure compatible lug materials to prevent galvanic corrosion and ensure a secure connection.
- How many terminals should I choose? Plan for current needs and future expansion. More terminals offer flexibility but occupy space.
- Do all kits include insulators? Not all do; some require separate insulators or mounting hardware depending on the kit.
- Is pre-assembly important? Pre-assembled kits speed installation and reduce on-site complexity, especially in tight spaces.
- What maintenance is required? Periodically inspect connections for tightness and signs of corrosion or wear.
