Best Rough-in Boxes for Mini Split Installations
Rough-in boxes and mounting solutions simplify mini split installs by protecting lines, wires, and drains while keeping systems accessible for service. This guide highlights top rough-in boxes and related mounting hardware to help American homeowners and contractors choose durable, code-compliant options for new construction and renovations.
| Product | Brand | Best Use |
|---|---|---|
| RBX3-MD-NC RoughInBox | RyMarCool | New construction rough-in for wall-mounted minis |
| Line Set Rough In Box | Lineset Box | Line set and drain/low-voltage termination |
| REHOYEE Wall Mount Bracket | REHOYEE | Outdoor mounting for mini split condensing units |
| 4 Pack Floor Mounting Base Kit | DETYI | Floor vibration isolation and support |
| MY RUSTIC Wall Mount Bracket | MY RUSTIC | Universal wall mounting for 7k–15k BTU units |
Rough-In Box For New Construction
The Marketair RBX3-MD-NC RoughInBox is designed for new construction or stud rehab projects. It protects the line set and cable from damage and shields the drain outlet from dirt and debris, enabling a clean rough-in before interior finishes. It supports a wall-mounted mini split setup without delaying other trades, streamlining scheduling for installers and builders alike. The box serves as a dedicated rough-in point for lines, cables, and drainage during construction.
Line Set Rough In Box For New Builds
The Lineset Box provides a dedicated termination point for line sets, condensation drains, and low-voltage wiring. It is designed for HVAC contractors and new builds in the United States, facilitating protection during construction and simplifying installation. By holding the bay for line sets and drains, it helps reduce rework and damage risk as walls and finishes are completed.

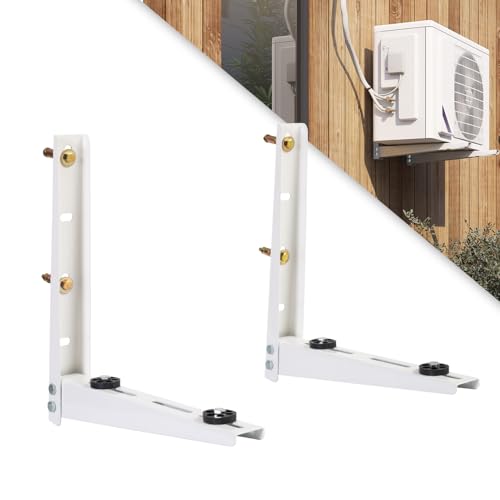

REHOYEE Wall Mount Bracket For Outdoor Units
REHOYEE’s heavy-duty wall mounting bracket offers universal fit for outdoor mini split condensers and heat pumps. Constructed of galvanized steel with rust-resistant finishes, it supports up to 220 pounds and includes protective rubber pads to minimize noise and vibration. It helps keep the unit elevated, protecting it from dirt, debris, and potential water exposure while simplifying outdoor service access.
Floor Mounting Base Kit For Mini Split
This 4-pack floor mounting base kit provides heavy-duty rubber feet and anti-vibration isolation for mini split condensers. The universal design supports a variety of units and helps absorb vibration and noise. It is rated to help manage heavy loads up to 800 pounds, making it suitable for many 9000–36000 BTU configurations and ensuring stable operation on uneven surfaces.
Wall Mount Bracket For 7k–15k BTU Units
MY RUSTIC’s universal wall mounting bracket fits mini split units between 7000 and 15000 BTU. Built from galvanized steel with a rust-resistant coating, it supports up to 300 pounds, elevating the unit off the ground for protection against dirt, debris, and water. The design emphasizes easy installation and long-term stability for various indoor-outdoor configurations.
Buying Guide
Key considerations when choosing rough-in boxes and mounting hardware for mini splits include compatibility, load capacity, and environmental exposure. Rough-in boxes should align with your wall construction and line-set routing needs, offering a dedicated termination point for drains and low-voltage wiring. Look for durable materials, gasketed or sealable designs to protect from dust, moisture, and debris, and ease of access for service.
Mounting brackets and bases influence installation height, vibration control, and exposure to weather. Select a bracket with adequate weight capacity for your unit, preferably galvanized steel with a weather-resistant finish. Rubber pads or anti-vibration features reduce noise transfer and prolong equipment life. For outdoor installs, ensure mounting solutions provide sufficient clearance for airflow and maintenance access, and verify compatibility with the refrigerant line set routing and service clearances.
When evaluating options, consider whether you need universal fit versus unit-specific designs, the ease of installation for DIY projects, and how the product integrates with other components (drain kits, condensate management, and electrical hookups). Finally, assess warranty coverage and manufacturer support to minimize risk during the life of the system.
