Best End Bell for PVC Conduit: Top PVC End Bells for Wiring
Answering the common buyer question: which end bell for PVC conduit best fits your project needs? This guide highlights five top end bells that seal and terminate PVC conduit runs efficiently. The selections cover a range of sizes—from 1-1/4 inch to 4 inches—so you can match your trade size and wall vault requirements. Ideal buyers include electrical installers, DIY contractors, and facility maintenance teams seeking durable PVC end bells that protect wiring during runs through walls and cabinets. Below is a quick comparison table to help you decide at a glance.
| Product | Brand | Trade Size | Best For |
|---|---|---|---|
| Cantex 5144012 Gray PVC Molded End Bell | Cantex | 4 in | Medium-to-large vaults, protection during wire pulls |
| Thomas & Betts E997H-CAR Gray PVC End Bell | Thomas & Betts | 1-1/2 in | Carlon PVC runs, compact spaces |
| Thomas & Betts E997G-CAR Gray PVC End Bell | Thomas & Betts | 1-1/4 in | Smaller PVC conduits, standard installations |
| Thomas & Betts Carlon E997N Rigid PVC End Bell | Thomas & Betts | 4 in | Rigid PVC systems, larger installations |
| Cantex CTX 2-1/2 PVC END BELL | Cantex | 2-1/2 in | Medium-sized vaults, pull-through protection |

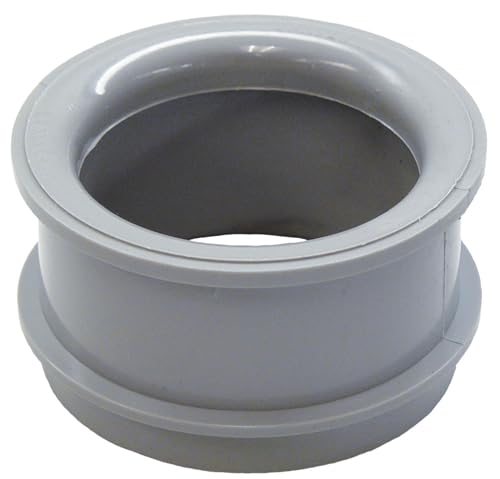

Cantex 5144012 Gray PVC Molded End Bell 4 Inch
Designed to protect wiring during pulls through vault walls, this gray end bell has a 4-inch trade size. Best for medium-to-large conduit runs where a robust end cap is needed to prevent wire damage. It’s a straightforward, molded PVC option that supports durable installation in standard conduit vaults. Caution: ensure correct fit for non-standard wall depths to avoid loose ends.
Approved Vendor B00821 Bell End Conduit Elbow, 2 in Trade
Best for compact PVC runs where a bell end elbow properly seals a 2-inch conduit. This option suits installations requiring a pivot point at the end of a conduit run. Better for tight spaces than larger end bells, but confirm compatibility with your conduit type. Caution: product naming indicates an elbow rather than a straight end bell, so use in appropriate configurations.

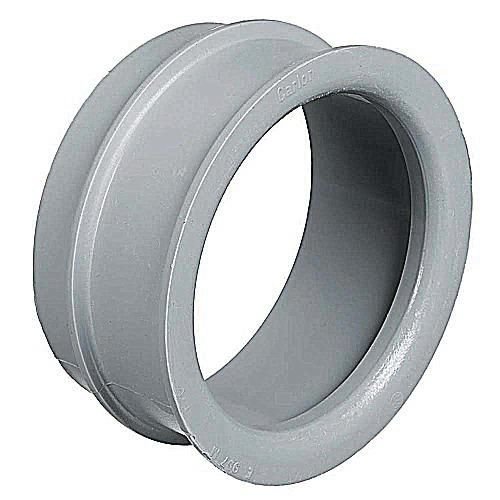

Thomas & Betts E997H-CAR Gray PVC End Bell 1-1/2 Inch Carlon®
Selected for 1-1/2-inch Carlon PVC runs, this end bell offers PVC construction with precise dimensions (approximately 2.255 Inch Dia x 1.894 Inch). It’s a good choice where space is moderately constrained, and a standard 1-1/2 inch end cap is required. Best for installations prioritizing a snug, durable seal in Carlon systems. Caution: ensure exact trade size to avoid fit issues.
Thomas & Betts E997G-CAR Gray PVC End Bell 1-1/4 Inch Carlon®
Best for smaller diameter PVC conduits, this end bell suits 1-1/4 inch Carlon runs. It provides a compact, durable end-cap solution with PVC construction and standard Carlon sizing. Better for tight installations where space is a premium. Caution: confirm notch alignment with conduit height to ensure full coverage.
Thomas & Betts Carlon E997N Rigid PVC 4 In End Bell
Chosen for rigid PVC 4-inch systems, this end bell is well-suited for larger vaults and longer runs where a sturdy termination is needed. It accommodates larger conduit diameters with a clear PVC construction, offering a secure seal. Limitation: larger footprint may not fit compact wall cavities without planning. Best for standard 4-inch end termination in Carlon PVC networks.
Cantex CTX 2-1/2 PVC END BELL, 5144009
Best for 2-1/2 inch conduit runs, this gray end bell provides protection for wires pulled through vault walls. It’s a mid-range solution balancing size and protection. Choose this if your project requires medium-size conduit termination with vault protection. Caution: verify that wall cavity space can accommodate the 2-1/2 inch end bell’s dimensions.
Buying Guide: Key Purchase Considerations
- Trade size compatibility: End bells come in a range of sizes. Match the trade size to your PVC conduit to ensure a proper seal and protection.
- Material and construction: PVC end bells vary in molded versus rigid constructions. Choose based on space, exposure, and durability needs.
- Application environment: Indoor walls, exterior enclosures, and vaults have different protection requirements. Consider weather resistance and impact tolerance if applicable.
- System compatibility: Some end bells are labeled for Carlon or other Carlon-compatible PVC systems. Confirm your conduit brand to avoid fit issues.
- Installation space: Larger end bells require more cavity depth. Measure available space before ordering.
- Protection level: The primary purpose is protecting conductors during pulls. Evaluate whether the end bell provides sufficient edge protection and a smooth interior surface.
Frequently Asked Questions
- What is an end bell used for in PVC conduit systems?
End bells terminate conduits and protect wires during and after pulls, sealing the end of the run and reducing wear on insulation.
- How do I choose the right trade size for an end bell?
Match the end bell’s trade size to the conduit size you are using to ensure a proper fit and seal.
- Are all end bells compatible with Carlon PVC systems?
Many are labeled for Carlon or standard PVC; verify brand compatibility with your conduit system before purchasing.
- Can I use an end bell for interior and exterior installations?
End bells are typically for interior vaults and walls; check the product’s environmental ratings if used outdoors.
- Is a larger end bell always better?
Not necessarily. Choose a size that fits the conduit diameter and wall cavity, balancing protection with space constraints.
