Best Cable Tray Mounting Brackets for Clean, Reliable Cable Management
Finding the right cable tray mounting brackets helps keep wiring organized, secure, and accessible for maintenance. This guide highlights five reliable options suited to different spaces—from workbenches and data centers to residential setups. Best for utility-heavy installations, these brackets support various tray sizes and diameters while resisting corrosion and wear. The buyer’s choices below aim to balance strength, ease of installation, and cost. The quick reference table summarizes each product’s key points to speed your decision.
| Product | ||
|---|---|---|
| NAYDMHN 50 Pack Wire Mesh Cable Tray Coupler Kit | General wire mesh trays, DIY and large projects | |
| Zonon 4pcs L-Shaped Wall Bracket | Wall-mounted tray organization in offices and homes | |
| Zonon 4 Pcs T-Shaped Brackets | Strong, above-and-below support for wall mounting | |
| Quest Manufacturing Cable Tray Wall Bracket (CT0026-04-03-2) | Heavy loads, wall-mounted installations | |
| NavePoint Wire Mesh Cable Tray L-Shaped | Budget-friendly, durable L-bracket for walls |
NAYDMHN 50 Pack Wire Mesh Cable Tray Coupler Kit
The NAYDMHN kit includes carbon steel couplers for end-to-end splices, designed for Φ4.0–6.0 mm wire mesh or basket cable trays. It uses an electrogalvanized finish for corrosion resistance and provides carriage bolts and holes sized for reliable joining. Best for projects needing quick, secure joints in metal mesh trays and baskets. Choose this if you want a cost-effective bulk option for high-volume installations.
Best for: Large DIY or commercial installations requiring multiple joints and uniform hardware. Better for: Projects with 4–6 mm wire diameters. Avoid if: You need plastic or non-metal alternatives.
Zonon 4pcs 8” L Type Bracket
The Zonon L-shaped wall mounts secure 8-inch metal mesh cable trays and accommodate wire diameters from 3.5 mm to 6.0 mm. They are galvanized steel, corrosion-resistant, and designed to resist harsh environments. This setup is ideal for vertical cable management in both commercial and residential spaces. A caution: mounting hardware like expansion bolts are not included, so you’ll need to source those separately.
Best for: Wall-mounted, small-to-medium tray setups. Better for: Environments needing rust resistance and easy maintenance. Choose this if: You require a straightforward wall mount with good stability.

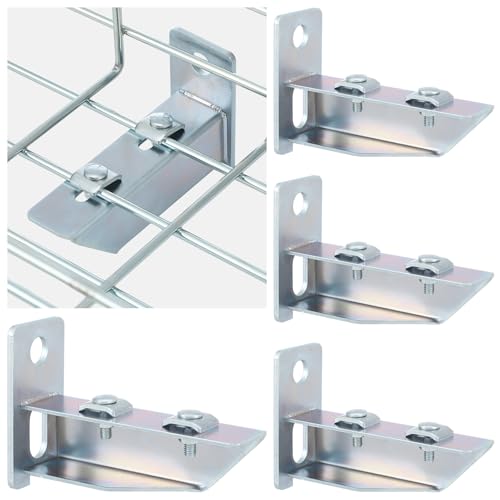

Zonon 4 Pcs Wire Mesh Cable Tray Bracket T-Shaped
The T-shaped Zonon brackets provide top-and-bottom support for wire mesh trays, boosting overall strength. Made of galvanized steel, they resist weather and corrosion while keeping cables secure. This kit includes matching couplers to help stabilize and route cables efficiently. Best for: Heavier cable loads and longer wall runs. Better for: Applications where vertical and horizontal support is needed. Caution: Ensure compatibility with your specific tray width and hole patterns.
Quest Manufacturing Cable Tray Wall Bracket CT0026-04-03-2
Aimed at wall mounting, this Quest bracket emphasizes heavy-load stability and compatibility with all Quest tray sizes. The zinc finish provides corrosion resistance for long service life. Best for: Applications requiring a sturdy, brand-consistent mounting solution. Better for: Fixed, secure wall installations where uniform hardware is preferred. Limitation: The description does not specify load rating, so verify with project requirements before use.
NavePoint Wire Mesh Cable Tray L-Shaped
The NavePoint L-shaped wall bracket is a budget-friendly option featuring electro zinc plating for weather and chemical resistance. This two-pack delivers dependable wall support for L-shaped tray installations. Best for: Cost-conscious projects needing reliable, durable brackets. Better for: Short to medium wall runs. Caution: The description emphasizes two-pack value; for larger systems, consider additional brackets to ensure even load distribution.
Buying Guide: Key Purchase Considerations
- Tray compatibility: Verify tray width (8 inches in several options) and wire diameter range (commonly 3.5–6.0 mm or 4–6 mm) to ensure a proper fit.
- Material and finish: Galvanized steel and zinc finishes offer corrosion resistance in varying environments; choose based on indoor vs. outdoor use and exposure to chemicals.
- Load capacity: Consider the expected load and spacing between brackets; heavily loaded runs may require T-shaped or reinforced brackets.
- Installation hardware: Some listings note that expansion bolts or mounting hardware are not included; plan for compatible fasteners and tools.
- Assembly and maintenance: Look for designs that minimize sagging, provide easy cable routing, and allow for quick maintenance access.
- Package contents: Some sets include multiple brackets or couplers; ensure you have enough pieces for your project length.
Frequently Asked Questions
- What bracket type is best for heavy cable loads?
– T-shaped or reinforced wall brackets are generally best for heavy loads because they offer superior support above and below the tray. - Do these brackets require special mounting hardware?
– Some listings exclude expansion bolts or fasteners; verify what is included and purchase appropriate hardware separately. - Can these brackets be used outdoors?
– Galvanized or zinc-plated steel brackets resist weathering, but confirm environmental suitability for your space. - Are these brackets compatible with all tray sizes?
– Not always; always verify tray width and hole compatibility with the specific bracket model before purchasing. - Is a bulk pack more cost-effective for large installations?
– Yes; many suppliers offer multi-pack options that lower per-unit cost for extensive runs. - Can these brackets support AV or network cable runs?
– Yes, for most standard mesh cable trays with typical diameters; confirm weight load and mounting approach for critical systems.
