Best 800 Amp 3 Phase Breaker Options for Industrial Setups
When selecting an 800A three-phase breaker, the goal is clear: reliable protection for heavy electrical loads in industrial or commercial settings. The top picks below cover MCCBs, molded case breakers, and disconnect solutions suitable for 3P configurations. They are grouped by best use cases to help you match your system requirements. This guide targets professionals and facilities managers seeking safe, scalable, and install-ready protection.
Summary of selected products:
- MUSM Generator Parts & Accessories MCCB — Best for high current, DC PV compatibility, and adjustable trips.
- CDM1L-800M/4300 — Best for compact 3P with residual current protection.
- CDM3-800F/3300 — Best for robust 3P protection with flexibility for various trip thresholds.
- GE SKLL36AT0800 — Best for legacy GE installations needing certified compatibility.
- SIEMENS S4260L3225 — Best for main-lug, 3P setups with plug-in breaker compatibility.
MUSM Three-Phase MCCB 800A: High Interruption, DC PV Ready
The MUSM MCCB is designed for massive electrical loads with high interrupting capacity. It protects industrial circuits against short circuits and overloads, supporting stable operation in demanding environments. This unit is especially suitable for facilities running DC solar PV systems up to 1000V, making it a strong choice for mixed AC/DC solar installations.
Best for: plants needing robust short-circuit protection and renewable-energy compatibility. Choose this if your system includes DC PV sections in addition to AC networks. Caution: adjustable trip settings require careful configuration to avoid nuisance trips in dynamic loads.
CDM1L-800M/4300 800A 3-Phase MCBC w/ Residual Current
The CDM1L-800M/4300 is a molded-case breaker rated at 800A in a 3-phase, four-wire configuration, with residual current protection. Its compact form factor is ideal for control panels and space-constrained switchgear. It provides reliable protection while supporting quick replacement in modular systems.
Best for: installations needing integrated residual current protection in a compact 3P arrangement. Better avoided if a higher trip curve range or more modern trip attributes are required without accessory options.
CDM3-800F/3300 Molded Case Breaker 3P
This 800A molded-case breaker is designed for three-phase service with flexible trip settings to accommodate various electrical loads. It supports standard industrial circuits and is suitable where modular protection with straightforward installation is needed. It offers a practical balance of protection and ease of maintenance.
Best for: facilities that need a reliable, easy-to-replace 3P MCCB with standard trip characteristics. Choose this if you prefer a straightforward, no-fricksafety approach to protection. Caution: verify panel compatibility for the exact frame and mounting requirements.

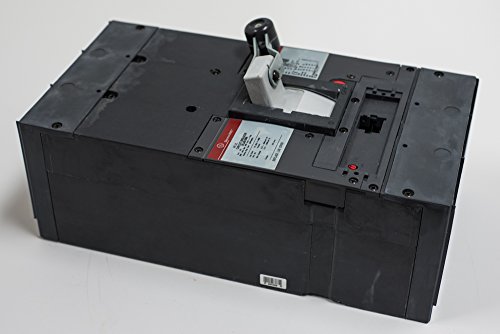

GE SKLL36AT0800 Main Lug 3-Phase Panel
GE SKLL36AT0800 is a type of main-lug panel component designed for GE environments. It is listed for certain three-phase applications and accepts plug-in style breakers. This option is suitable for upgrades or retrofit projects in existing GE installations where main-lug configurations are preferred.
Best for: organizations already using GE breakers and panels seeking compatible 3P protection modules. Avoid this if you require modern main breaker configurations or specific upgrade paths beyond plug-in compatibility.
SIEMENS S4260L3225 225-Amp Load Center
The SIEMENS S4260L3225 is a 3-phase load center with 225 A capacity per line and space for 60 circuits. While not an 800A unit itself, it represents a common modular approach for building 3P protection around main-lug inputs by integrating compatible breakers. It’s UL-listed and supports plug-in compatibility with Siemens or Murray products.
Best for: projects that use Siemens-based protection strategies and need a scalable, modular load center. Choose this if your system requires a trusted brand with broad plug-in compatibility. Caution: ensure the panel’s total current rating aligns with your 800A protection strategy.

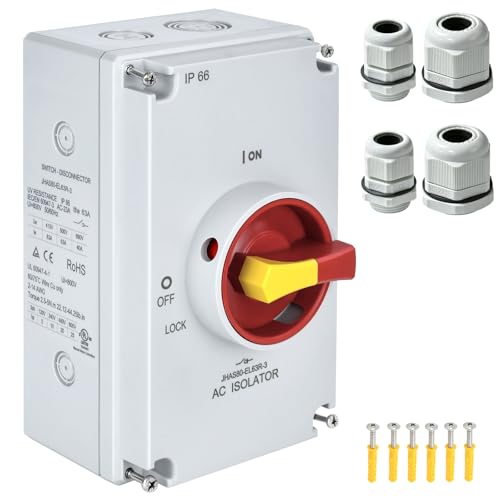

ZGSZJHF 63A 3-Poles Outdoor PV Disconnect
This outdoor PV disconnect is UL-listed for 63A and 800V AC, with IP66 weather resistance. Although it is a smaller unit, it fits into PV array designs that require a safe isolation switch, particularly in outdoor or harsh environments. It provides a robust safety disconnect point for 3-phase PV systems.
Best for: PV installations needing a rugged, weatherproof disconnect at the array or service entry. Avoid this if the system demands higher current than 63A or if enclosure space is constrained.
Buying Guide
Key purchase considerations help ensure the 800A three-phase breaker matches your system needs:
- Current rating and type: Confirm 800A rating, 3P configuration, and whether you need molded-case breakers (MCCB) or disconnect switches.
- Trip characteristics: Look at adjustable trip settings, thermal/magnetic trip ranges, and any residual-current protection features.
- DC compatibility: If you operate solar PV or DC networks, verify DC voltage ratings and PV compatibility as applicable.
- Panel and bus compatibility: Ensure the breaker type fits your panel’s frame, bus, and plug-in style.
- Environmental conditions: For outdoor or harsh settings, select devices with suitable IP ratings or enclosure protection.
- Warranty and standards: Prefer components that meet UL/CE/TUV requirements and align with local electrical codes.
- Maintenance considerations: For modular systems, verify availability of spare parts and ease of field replacement.
Frequently Asked Questions
- What is the difference between an MCCB and a standard circuit breaker?
– MCCBs are designed for higher current ratings, wider trip ranges, and often include adjustable protection; standard breakers handle lower currents with fixed characteristics. - Do I need residual current protection on an 800A 3P breaker?
– It depends on your circuit design and code requirements. Residual current protection adds ground fault monitoring, useful in sensitive areas. - Can a 3P 800A breaker protect both AC and DC segments?
– Some units are DC-compatible, especially in solar PV setups. Always check the device’s DC voltage rating and manufacturer guidance. - Is plug-in compatibility important for Siemens or GE panels?
– Yes. Matching the panel brand and compatible plug-in breakers ensures proper fit and electrical contact. - When should I use a disconnect switch separate from a circuit breaker?
– Use a disconnect for explicit isolation in maintenance or safety-critical scenarios, especially outdoors or near PV arrays. - What installation considerations affect 800A breakers in three-phase systems?
– Consider bus bars, clearance, heat dissipation, and panel rating to avoid overheating and ensure reliable protection.
