Best 4 Inch PVC Electrical Conduit Fittings for Safe, Fast Installations
Finding the right 4 inch PVC electrical conduit fittings means choosing reliable pieces that fit your system, resist corrosion, and simplify transitions between conduit types. This guide highlights five practical options, explaining who each is best for and why they stand out. Whether you’re wiring a commercial project, a home upgrade, or a utility install, these selections cover common needs such as adapters, elbows, couplings, and unions. The table below helps compare core details at a glance.
| Product | Best For | Key Benefit |
|---|---|---|
| Cantex 5140112 Cantex, 4-Inch PVC Terminal Adapter | Transitioning from plain end PVC to threaded metal or PVC bells | Easy end transition with compatible bell fittings |
| Cantex 5133832 Elbow, 90 Degree, 4 In PVC Conduit | Routing around corners | Smooth 90-degree bend for efficient layouts |
| Schedule-40 4″ PVC Rigid Conduit Couplings (Supply) | Connectors in rigid PVC runs | Corrosion-resistant and insulating properties |
| Electrical Conduit Kit 3/4″ 4ft AC Whip Kit | Flexible, pre-cut, and ready-to-install runs | Liquid-tight and includes straight and angle fittings |
| PVC Union Pipe Fittings 4″ Slip Union Coupling | Easy disassembly or reconfiguration | EPDM O-ring seal for socket-to-socket connection |
Cantex 5140112 4-Inch PVC Terminal Adapter
The 4-Inch PVC Terminal Adapter from Cantex is designed to connect plain-ended PVC conduit to threaded metal or PVC female bells. This adapter is best for installations where a secure transition is required between different conduit styles. It measures 3.438 inches by 5 inches, with a 4-inch trade size. Best for projects needing a reliable, simple-ended-to-threaded transition, such as service panels or raceways that mix materials.
Who it’s best for: electricians handling mixed-material conduit runs or replacements where a clean end-to-threaded connection is needed. Why selected: it specifically enables transitions without complex hardware additions, reducing install time. Caution: verify compatibility with your exact bell or threaded fitting to ensure a proper seal and fit.
Cantex 5133832 90 Degree Elbow, 4 In Conduit
This 90-degree elbow fits 4-inch PVC conduit and provides a compact corner solution for tight spaces. It’s suitable for indoor applications where a clean bend is needed to maintain conductor pathways. It is especially useful in equipment rooms or control panels where routing around obstacles is required. Best for: setups needing predictable, standard bends to maintain consistent conduit spacing.
Limitation: ensure the elbow’s interior diameter accommodates any installed cables without restricting pull or bending radius. Best practice is to plan bends to avoid kinking or excessive bending strain.
Schedule-40 4″ PVC Rigid Conduit Couplings (Supply)
This Schedule-40 PVC rigid conduit coupling is designed for commercial, industrial, and utility use. It emphasizes corrosion resistance and insulation benefits typical of PVC. The listing is for a batch (20 fittings), supporting larger projects with multiple joints. Best for: bulk runs or installations where consistent, corrosion-resistant joints are needed to maintain long-term integrity.
Limitation: PVC fittings are typically non-magnetic and provide insulation, which could affect grounding plans. Plan join locations to avoid interference with nearby metallic components or electrical boxes.
Electrical Conduit Kit 3/4″ 4ft AC Whip Kit
This 3/4 inch by 4-foot AC whip kit includes straight and angle fittings with liquid-tight PVC conduit. It’s designed to be flexible and is suitable for equipment or machine tools where quick, adaptable wiring is needed. Best for: installations requiring a ready-to-use, flexible run with included fittings. Caution: ensure the whip length and fittings meet environmental exposure and abrasion requirements for your setup.

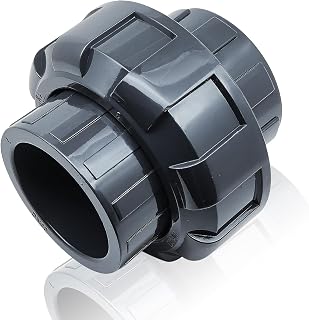

PVC Union Pipe Fittings 4″ Slip Union
Best for: projects requiring easy disassembly or future reconfiguration of conduit runs. Why selected: unions simplify maintenance and future expansion without cutting or gluing fittings. Caution: ensure proper O-ring seating to avoid leaks in moist or dusty environments.
Buying Guide
What to consider when selecting 4 inch PVC electrical conduit fittings
- Material and compatibility: PVC fittings should match your conduit type (Schedule 40, plain end, or threaded connections) and the environment they’ll inhabit.
- Environmental exposure: For outdoor or corrosive-soil settings, prioritize corrosion-resistant PVC with appropriate seals and ratings.
- Fitting type and purpose: Elbows, adapters, couplings, and unions each serve different tasks—plan routes and future modifications before purchase.
- Electrical and insulation implications: PVC provides good insulation; plan grounding and routing to avoid unwanted interference with metallic components.
- Bulk vs. single fittings: Large projects may benefit from bulk packs, while smaller jobs can succeed with individual pieces.
How to plan a 4 inch PVC conduit run
- Sketch the route, noting any corners, junctions, or access points.
- Choose fittings that minimize bending radius and facilitate pulls without kinking the conduit.
- Check supplier specs for trade sizes, port sizes, and compatibility with threaded or bell-end connections.
FAQ
- Q: What is the primary advantage of a PVC terminal adapter? A: It enables a reliable transition from plain-ended PVC to threaded metal or PVC fittings, simplifying mixed-material installs.
- Q: When should I use a PVC elbow? A: Use it to negotiate corners or tight spaces while maintaining a clean conduit path.
- Q: Are PVC fittings suitable for outdoor use? A: Yes, PVC commonly resists corrosion and environmental exposure, but verify specific product ratings for weather and UV conditions.
- Q: What is a conduit union and when is it useful? A: A union allows easy disassembly and reconfiguration of conduit runs, beneficial for future changes or maintenance.
- Q: How do I choose between a coupling and a union? A: Use couplings to join straight runs; use unions when you need future access or reconfiguration without cutting.
- Q: Do these fittings affect electrical grounding plans? A: PVC is non-conductive, so plan grounding and bonding around the conduit layout accordingly.
