Best 200 Amp Knife Switches for Reliable Power Control
The best 200 amp knife switch options provide safe, simple on/off control for high-current circuits in marine, automotive, and industrial setups. This guide helps buyers choose practical, durable switches based on configuration (SPST or DPST), voltage rating (AC 400V), and mounting details. Ideal buyers include electricians, DIY enthusiasts, boat owners, and maintenance technicians who need quick isolation or battery disconnect capabilities without complex wiring. Below are five top matches with clear, objective comparisons to help you pick the right one for your project.
| Product | Brand | Configuration | Voltage / Current | Best For |
|---|---|---|---|---|
| AC 400V 200A Single Throw Electric Brake Open Type Safety Knife Switch SPST | YXQ | SPST | AC 400V, 200A | Compact, simple isolation for single-circuit use |
| RUIAN DPST Electric Brake Open Type Safety Knife Switch Double Pole AC 400V 200A | RUIAN | DPST | AC 400V, 200A | Two-circuit control with independent poles |
| RUIAN SPST Electric Brake Open Type Safety Knife Switch Single Throw AC 400V 200A | RUIAN | SPST | AC 400V, 200A | High-current single-circuit isolation |
| YXQ AC 400V 200A Double Pole Electric Brake Open Type Safety Knife Switch DPST | YXQ | DPST | AC 400V, 200A | Dual-circuit safety switch with robust metal construction |
| RED WOLF 1-2-Both-Off Battery Switch DC 12V-48V 200A | RED WOLF | 1-2-Both-Off (DC) | DC 12-48V, 200A | Battery isolation for marine or automotive systems |

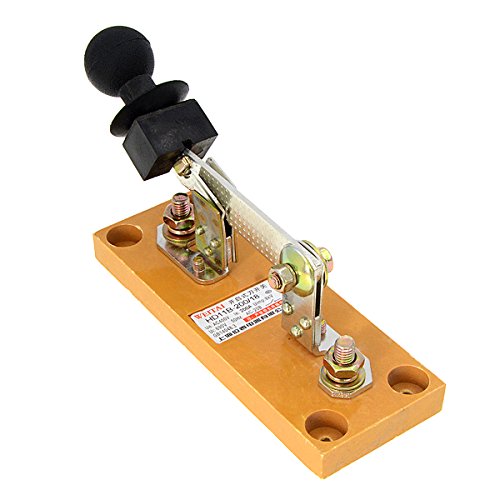

AC 400V 200A SPST Knife Switch by YXQ
Product Type and Rating: Single Pole Single Throw (SPST); Model HD11-200/18; Ue 400V AC; Ie 200A; Uimp 8kV; Ui 690V 50Hz. Installation details include mounting holes and cable threading diameters. Best for a single high-current circuit where a straightforward on/off control is sufficient. The metal build supports reliable operation in moderate to harsh environments. Caution: Only one circuit is controlled at a time, so use DPST or additional switches for multi-circuit isolation if needed.
RUIAN DPST Open Type Knife Switch (AC 400V 200A)
Configuration and Rating: Double Pole Single Throw (DPST); Material: Metal; Power: AC 400V 200A. Installing Hole Diameter 6.4mm; Center distance 137mm; Center hole diameter 4.3mm. This design supports switching two independent circuits simultaneously, improving safety when multiple lines share a common supply. Best for systems requiring both positive and negative line isolation. Limitation: Slightly larger footprint due to dual poles; ensure panel space and panel cutouts accommodate 137mm center distance.
RUIAN SPST Knife Switch (AC 400V 200A)
Product Focus: SPST; Model HD11-200/18; Ue AC 400V; Ie 200A; Uimp 8kV; Ui 690V 50Hz. Offers reliable, simple on/off control for a single circuit. Best for installations where space is limited and only a single disconnect is required. Caution: Ensure proper insulation and secure mounting to prevent accidental disengagement during operation.
YXQ DPST 200A Double Pole Knife Switch
Detail and Rating: DPST; Power: AC 400V 200A; Model HD11-200/28; Center hole diameter 4.3mm; Installing Hole Distance 137mm. This switch is best for concurrent control of two circuits with independent lines, offering enhanced safety and easier wiring in dual-circuit applications. Better for marine or industrial panels where two separate loads must be isolated together. Limitation: Slightly larger footprint than SPST variants; verify panel cutouts before purchase.
RED WOLF 1-2-Both-Off DC 200A Battery Switch
Type and Use: DC 12-48V; 200A rating; 4-position On/Off/1-2/Both-Off; M8 stud connections. Best for battery isolation in boats, RVs, and off-grid systems where battery drain management or emergency isolation is necessary. A limitation to watch: continuous current will vary with temperature and humidity, which can affect performance under extreme conditions. Ensure proper enclosure ventilation to maintain durability.
Nilight 200A Master Battery Disconnect
Description and Rating: Heavy-duty, ABS housing; 200A continuous rating; 32VDC max; intermittent 300A; cranking 1000A; 2-position On-Off with 5-second burst capability. Best for marine and automotive applications where a durable, weather-resistant disconnect is needed. Caution: rated voltage is 32VDC, so confirm system voltage before use in higher-voltage configurations to avoid damage.
Buying Guide: Key Considerations
- Configuration: Choose SPST for single-circuit control or DPST when you need to isolate two circuits simultaneously. For dual battery banks, a DPST or a 1-2-Both-Off DC switch is often preferred.
- Voltage and Current Ratings: Confirm AC/DC ratings match your system. 200A is common for battery banks and main power feeds; ensure the switch can handle peak currents (e.g., cranking or intermittent loads).
- Mounting Footprint and Hole Dimensions: Check center-to-center distances and hole diameters to ensure proper panel cutouts and secure mounting.
- Material and Durability: Metal-bodied switches tend to be more rugged in harsh environments; plastic housings may be lighter but require proper protection in outdoor settings.
- Environmental Suitability: Marine and outdoor installations benefit from weather-resistant housings and corrosion resistance. Confirm IP ratings if exposed to water or salt spray.
- Safety and Isolation: Ensure the chosen switch provides a clear on/off state and reliable electrical isolation, especially in emergency or maintenance scenarios.
- Wiring Considerations: Plan cable sizes to match the connector threads and terminal sizes. Improper wiring can lead to overheating or voltage drop.
Frequently Asked Questions
- What does 200A rating mean for a knife switch?
It indicates the maximum continuous current the switch can safely carry in normal operation without overheating. - When is DPST preferred over SPST?
Use DPST when you need to switch two circuits at once, such as both positive and negative lines, or two battery banks. - Can these switches handle DC and AC equally?
Ratings vary by model; verify whether the switch is rated for AC or DC and ensure voltage compatibility with your system. - Is a higher amperage rating always better?
Not necessarily. Choose a rating suited to your actual load and consider future expandability, wire sizes, and enclosure space. - What maintenance is required for knife switches?
Periodic inspection for corrosion, loose terminals, and insulation integrity is recommended, especially in marine environments. - Are these switches suitable for emergency disconnects?
They provide a straightforward on/off mechanism but should be paired with proper safety practices and, if needed, additional protective interlocks.
